Tekton InStart One-drum mower var. 2

Tekton InStart One-drum mower var. 2

self-propelled modular drum mower; double disc with operating width 60 cm; B&S 675 Series InStart engine; max. output 5.5 HP; 2 forward speed; electric starter
More information
Order No.:01233.340
Max. output: 1,800 m2/hour
Max. operating width: 60 cm
Engine: Briggs&Stratton 5.5 HP
Engine capacity: 163 cc
Travel: yes, 2 speeds forward

Tekton mowers are used for mowing of meadows and gardens at the cottages and family houses and even at the places where it is necessary to mow the grass every day for farm animals. They are suitable for flat lands and slightly sloping grounds. Thanks to their low weight and easy contol they are suitable for mowing of lands where there is lot of trees, kerbs, garden beds etc. The main advantage of Tekton machines is their original construction in connection with low weight and high hourly performance. The new from 2012 is a cover above mowing disc (protecting the operator from flying stones and impurities) and higher travel efficiency. Tekton kit is a machine that can be variable used as a mower, a mulcher or a snow blade. All Tekton machines have the same construction. They differ from each other only in the engine´s type.
The mower is equipped with a stainless steel cover which meets the safety standards. It says that the half of the cutting disc has to be covered by solid shield within the blades.


Specifications:
Max. operating width:60 cm
Travel axle:self-locking divided axle (replacing the differential with locking)
Travel speed:2 forward speeds (2.3 km/hour; 3.0 km/hour)
Tyres:big blown wheels 400 mm with V-shaped tread pattern

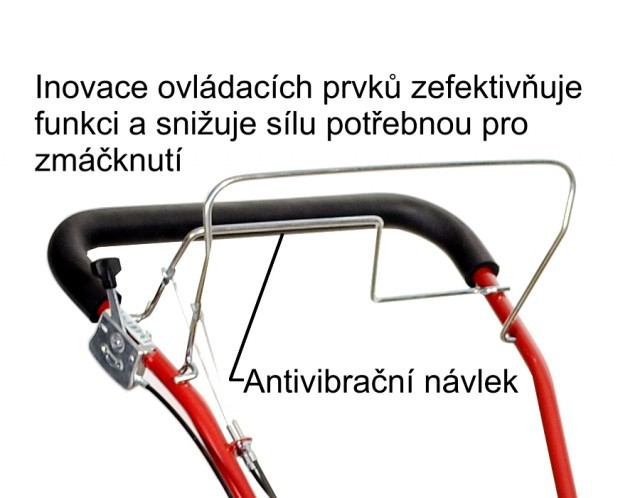

Handles:adjustable in 4 levels, softened handgrip
Modular unit:yes, (4 adaptors and optional extras)
Stubble height:4.0 cm in average
Disc:double disc (disc fully covered with a slider) with 4 blades, protecting frame with upper net prevents from the undesirable bits spreading
Engine:4-stroke Briggs&Stratton, 675 Series InStart
Fuel:gasoline Natural 95
Engine capacity:163 cc
Cylinder:aluminium
Engine working speed:3,060 rpm
Total max. engine output:5.5 HP/4.0 kW
Engine output at 3,060 rpm:3.8 HP/2.8 kW
Torque at 3,060 rpm:8.8 Nm
Engine lubrication:spray
Engine start:eletric button on the handles
Equipment included:Li-ion battery, charger
Disc covering:stainless steel cover (in conformity with Safety Standards)
Weight:52 kg
Recommended maintained area:up to 10.000 m2
