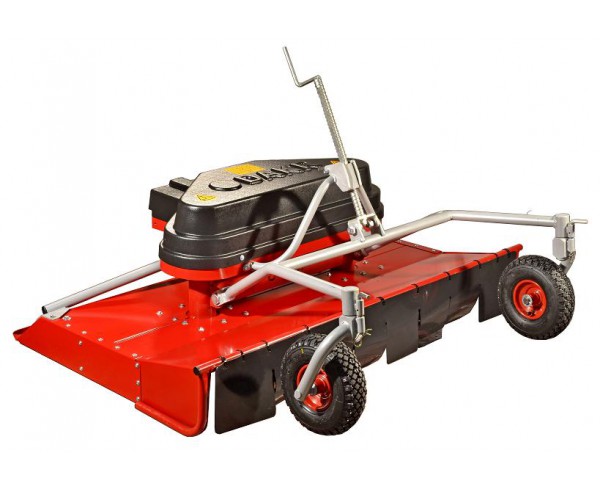

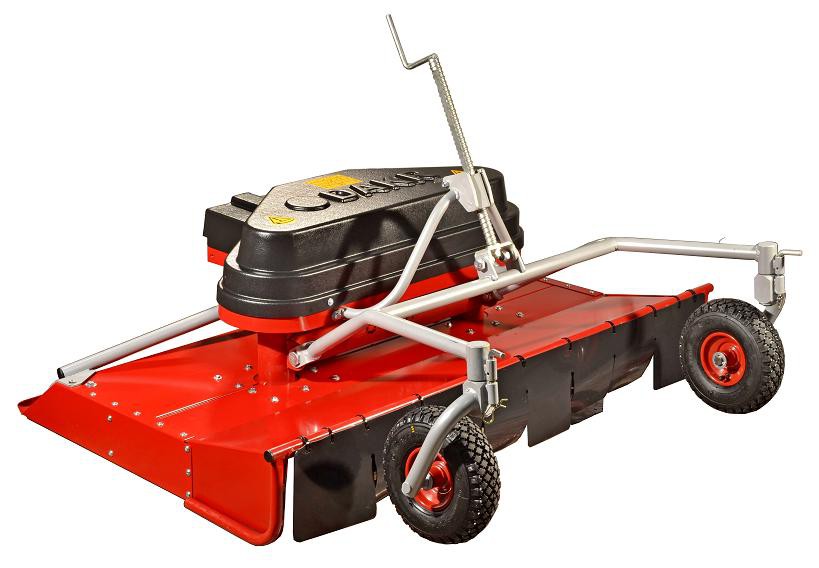

M121 Two-blade mulcher
adaptor compatible with Panter FD3 and FD5 driving units; operating width 121 cm
More information| Order No.: | 01236.005 |
| Max. operating width: | 121 cm |
In connection with Panter FD3 driving unit constitutes the highest-efficiency combination for mulching of large areas such as fields and pastures. Blades travel overlap and the surface is therefore evenly mowed. Blades timing is secured by the chains. The construction solution is protected by Utility Designs.
M121 two-blade mulcher specifications:
| Max. output with FD3: | 9,680 m2/hour |
| Max. operating width: | 121 cm |
| Cutting mechanism: | 2 horizontal mulching blades Oregon |
| Blades drive: | the blade timing is provided by means of chains in order to ensure overlapping blade routes |
| Adaptor connection: | enables the mulcher horizontally tilting and it copies the terrain better |

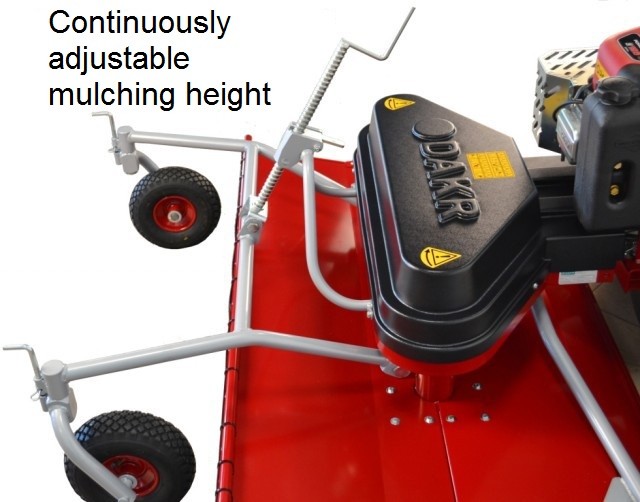

| Stubble height: | 3-10 cm, central height setting of the stubble height with locking |
| Weight: | 87 kg |

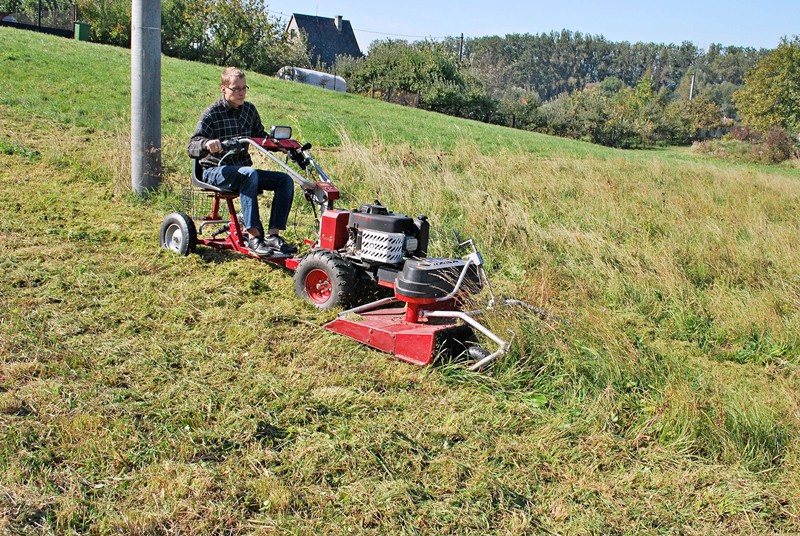

| Options: | seat for flat grounds and slight slopes |
| Recommended maintained area: | unlimited |
| Compatible driving units: | FD3eco, FD3-500, FD5 |
Compatible adaptors
Panter FD3-500modular Panter driving unit; max. output 15.5 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential
Panter FD3ecomodular Panter driving unit; max. output 13.2 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential
