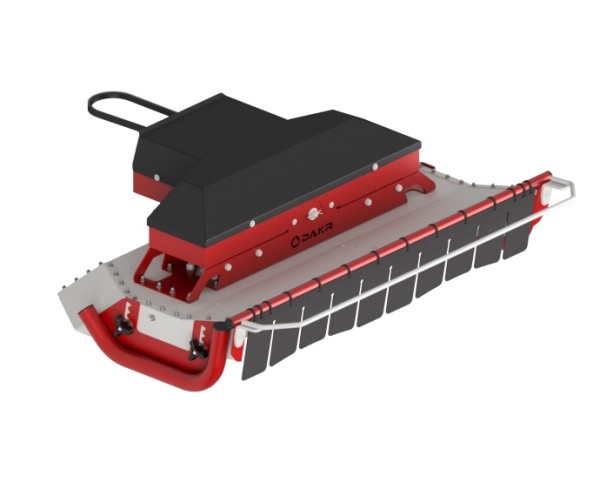

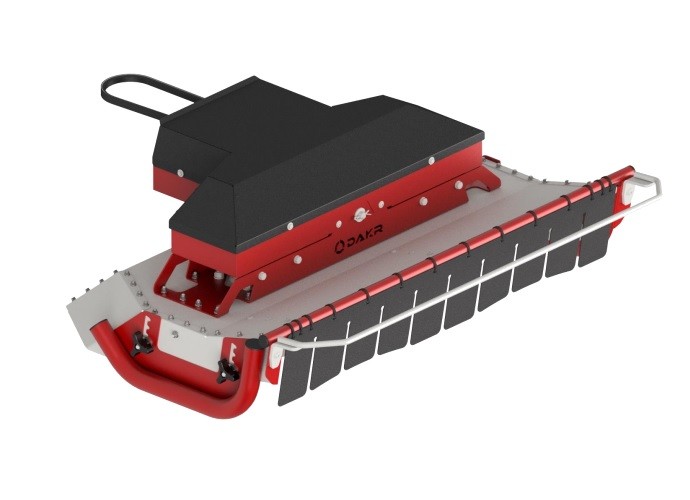

M91 Mulcher
Order No.: | 01236.026 |
Max. operating width: | 91 cm |

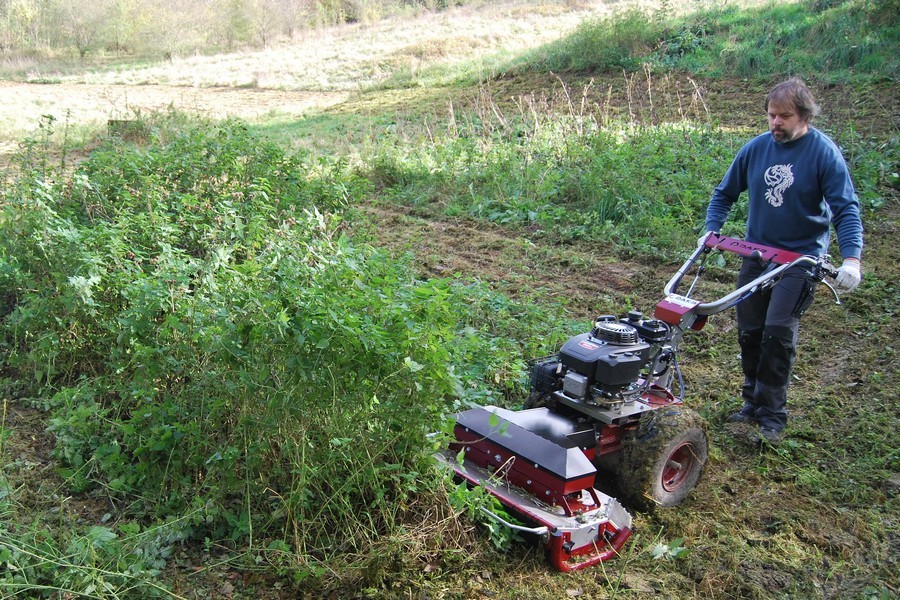

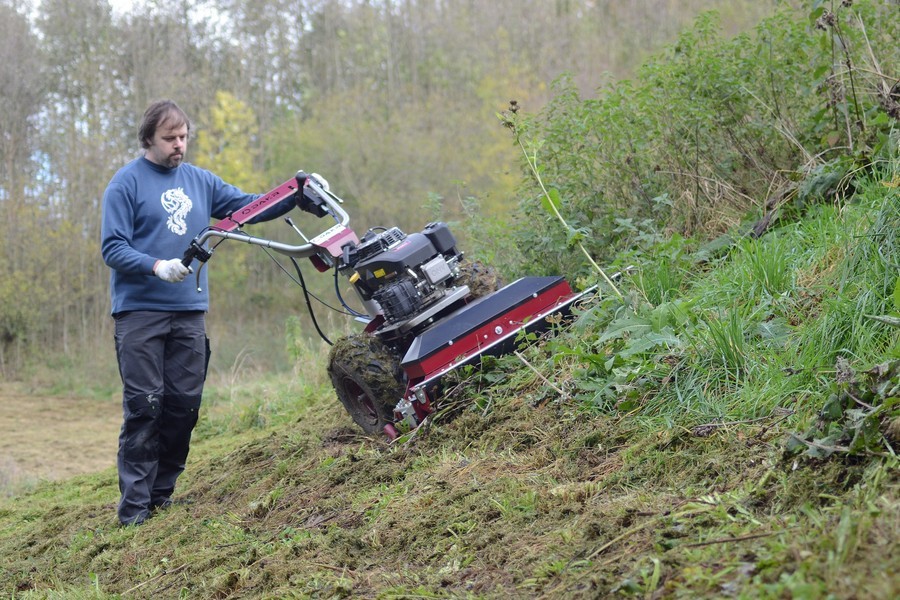

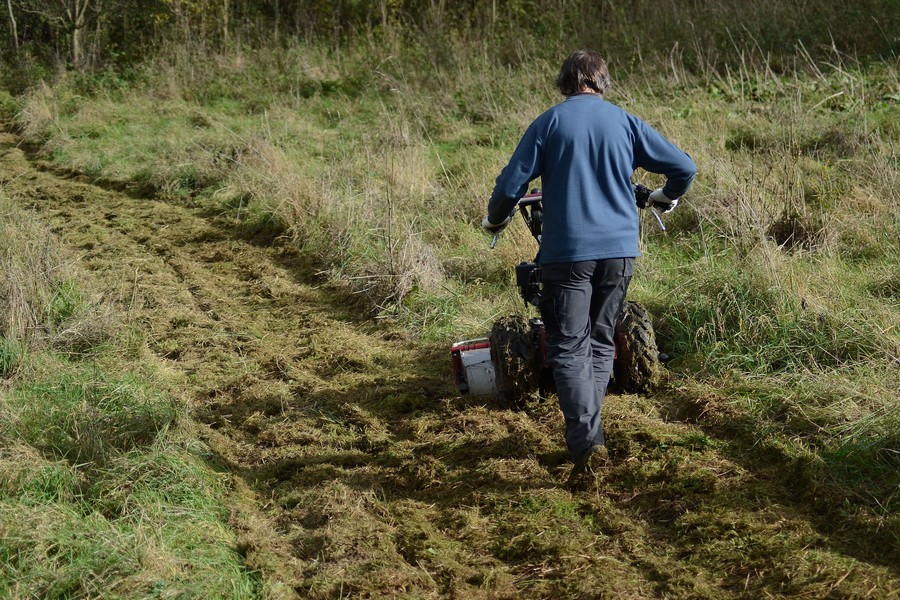

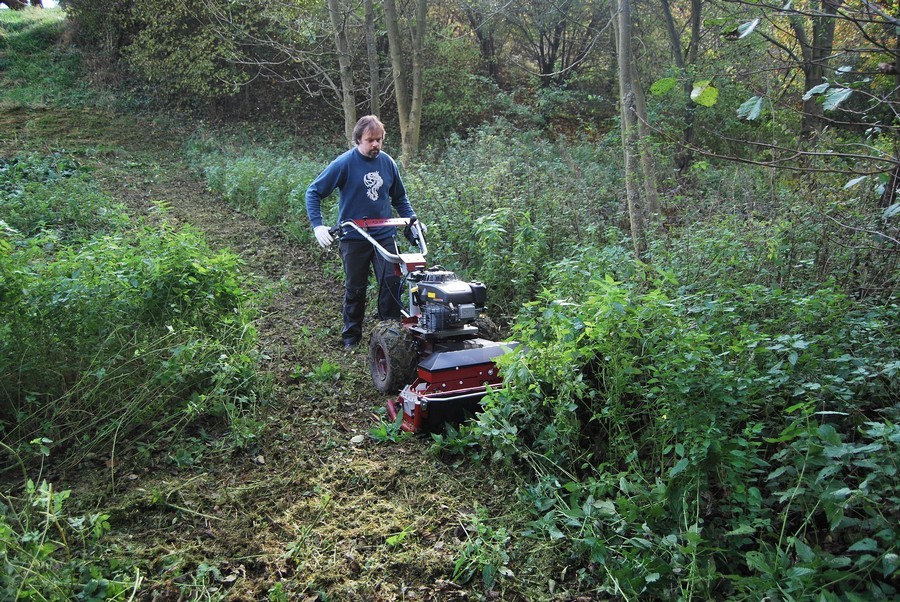

The main advantages of this mulcher are its light weight, excellent manoeuvrability and durable construction. The cutting height is determined by two adjustable steel sliders located on the sides, on which the cutting mechanism glides, keeping a straight direction, crossing uneven ground and allowing an easy change of direction if necessary. The swivel mountings, connecting it with the driving unit, ensure that the mower follows uneven terrain in a transverse direction. This adaptor can be used in places with many obstacles that need to be avoided, you can simply control it on the slope and you can also cut, for example, grass under bushes that can be driven head-on. Compared to single-rotor mulchers, it leaves a significantly shorter grass mulch spreaded over the area in an easily visible line. The energy consumption of this machine is lower than that of mulchers with an operating width of 1 metre or more, so the M91 allows you to work at a higher travelling speed.

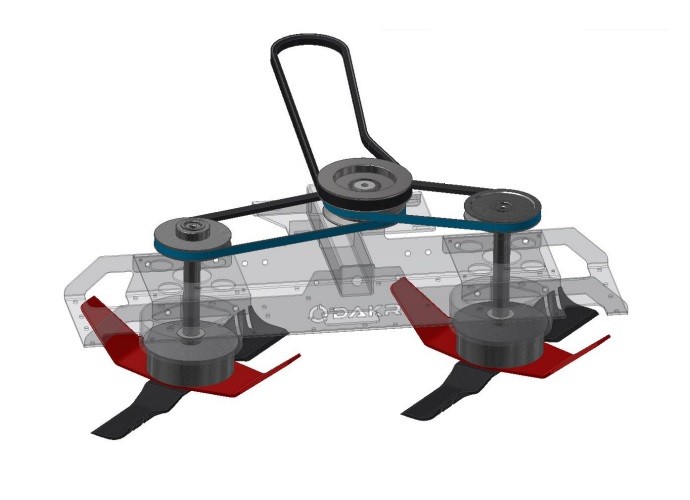

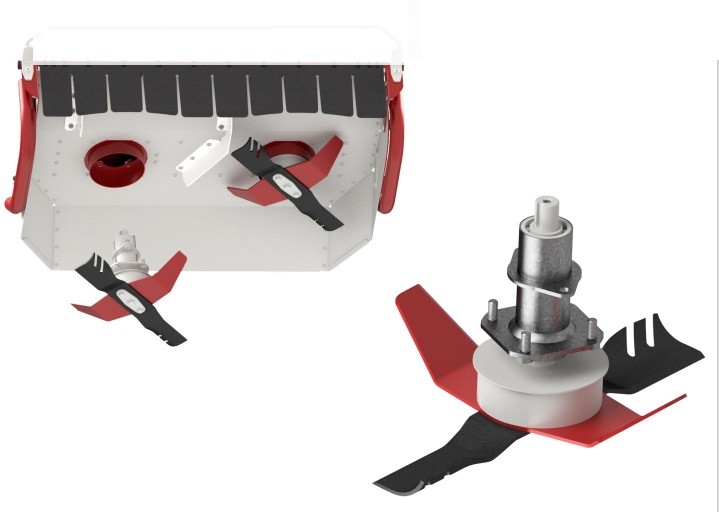

The drive of the rotors by V-belts brings high durability and very low noise. Both rotors with a pair of special blades rotate in the same direction and have a maximum speed of 3,000 rpm.
The mulcher can be used for regular cutting, where all the grass is left on the stubble. When cutting maintained meadows, the great advantage is that the mulcher is one of the optional adaptors, not a single-purpose machine. Thanks to the regular combination of mowing and mulching, there is no degradation of the land.
M91 mulcher specifications:
Options: | seat for flat grounds and slight slopes |
Max. output with Panter FD3: | 7,280 m2/hour |
Max. output with Panter FD5: | 8,190 m2/hour |
Max. output with Panter FD52V: | 12,740 m2/hour |
Max. operating width: | 91 cm |
Stubble height: | 4 setting position within the range 4-9 cm |
Weight: | 55 kg |
Recommended maintained area: | unlimited |
Compatible driving units: | FD3eco L352, FD3eco, FD3-500, FD5, FD52V |
- Panter FD3eco L352
modular Panter driving unit; max. output 11 HP; iron cylinder sleeve; hydrostatic gearbox; single slide control of speed forward and bacward; axle with lockable differential

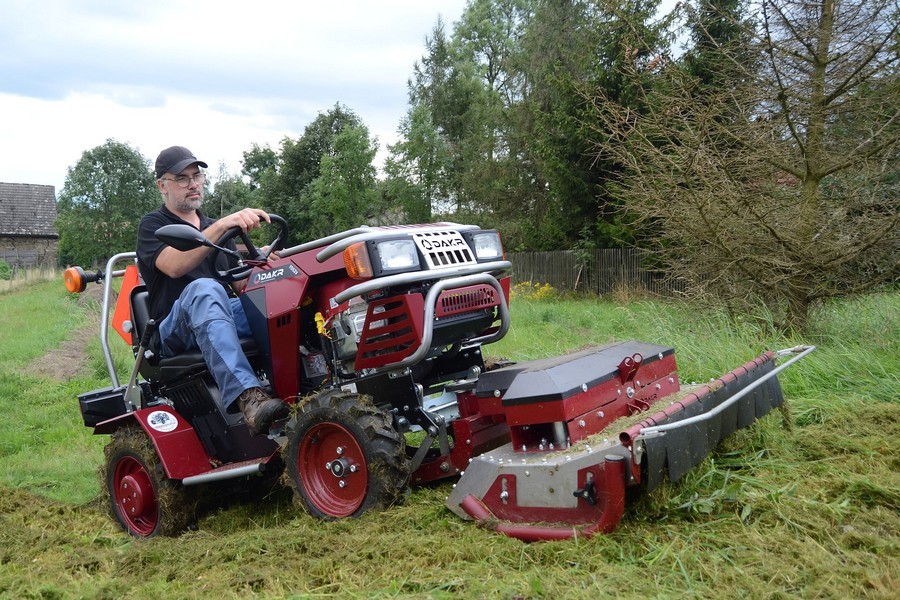

- Panter FD52V
stronger and bigger four-wheel Panter FD52V machine; max. engine output 22.0 HP; iron cylinder sleeve; hydrostatic gearbox; forward and backward control of speed; axle with differential and locking; electric start; adaptor´s lifting from operator´s position; wide range of optional extras
- Panter FD5
four-wheel Panter FD5 machine; max. engine output 15.5 HP; iron cylinder sleeve; hydrostatic gearbox; forward and backward control of speed; axle with differential and locking; electric start; adaptor´s lifting from operator´s position; wide range of optional extras
- Panter FD3-500
modular Panter driving unit; max. output 15.5 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential
- Panter FD3eco
modular Panter driving unit; max. output 13.2 HP; single slide control of speed forward and bacward; iron cylinder sleeve; oil pump and filter; axle with lockable differential
