Panter FD2H driving unit
| Order No.: | 01235.019 |
| Engine: | Briggs&Stratton 6.5 HP |
| Travel: | yes, single slide control of speed forward and bacward |
The driving unit is equipped with Tuff Torq K46 DE gearbox and axle with differential, automatic locking and brake. Thanks to the gearbox there is the single slide control of speed forward and backward so you can adapt the speed to work. The speed is controlled by a lever on the handlebars. Especially when the heavier adaptor (a four-disc mower, a sweeper, a haymaker) is attached you will appreciate an easy turning thanks to the axle with the differential and on the other side if necessary the machine goes in straight direction.
To the driving unit it is possible to connect the seat and the wide range of adaptors such as mulcher, haymaker, snow blower, cart, sweeping brush, blade, rotavator, branch crusher.
Specifications:
| Travel: | yes, single slide control speed forward and backward |
| Speeds: | forward 0÷6 km/hour, backward 0÷3 km/hour |
| Axletree: | lockable differential and brake |
| Gearbox: | hydrostatic Tuff Torq K46DE |
| Other equipment: | driving brake |
| Engine vibration attenuation: | 4 silent blocks |
| Handlebars: | height and side adjustable |
| Tyres: | big blown wheels 420 mm with V-shaped tread pattern |
| Wheels outer profile: | 67 cm |
| Weight: | 64 kg |

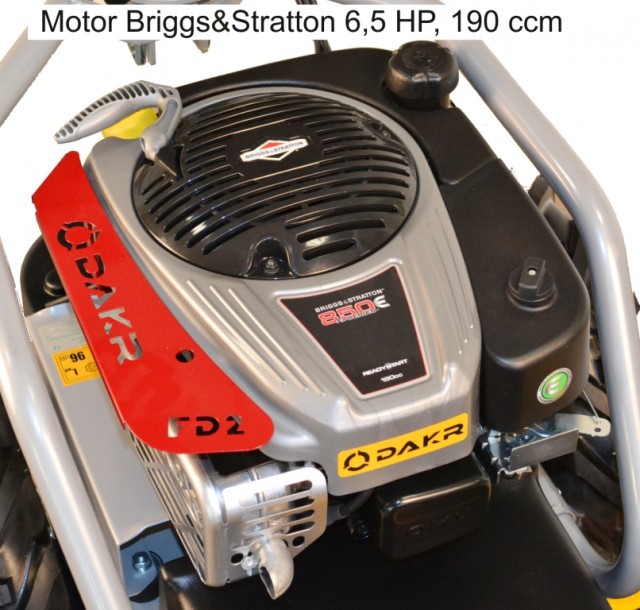

| Engine: | 4-stroke Briggs&Stratton I/C, 850 Series OHV |
| Fuel: | gasoline Natural 95 |
| Engine capacity: | 190 cc |
| Cylinder | cast iron sleeve |
| Engine working speed: | 3,060 rpm |
| Total max. engine output: | 6.5 HP/4.8 kW |
| Engine output at 3,060 rpm: | 5.0 HP/3.7 kW |
| Torque at 2,600 rpm: | 11.5 Nm |
| Engine lubricaton: | pressure oil filtration, spray lubrication |
| Engine starting: | ReadyStart system - easy starting without choke |
