Panter FD3-500 driving unit with M121 mulcher and BPR seat
Panter FD3-500 driving unit with M121 mulcher and BPR seatPanter FD3-500 driving unit with M121 mulcher and BPR seatPanter FD3-500 driving unit with M121 mulcher and BPR seatPanter FD3-500 driving unit with M121 mulcher and BPR seat
Panter FD3-500 driving unit with M121 mulcher and BPR seat

Panter FD3-500 driving unit with M121 mulcher and BPR seat

modular self-propelled mulcher with operating width 121 cm; hydrostatic gearbox; single slide control of speed forward and backward; B&S engine with max. output 15.5 HP
More information
Order No.:01236.001+01236.005+01235.091
Max. output: 9,680 m2/hour
Max. operating width: 121 cm
Engine: Briggs&Stratton 15.5 HP
Travel: yes, single slide control of speed forward and backward

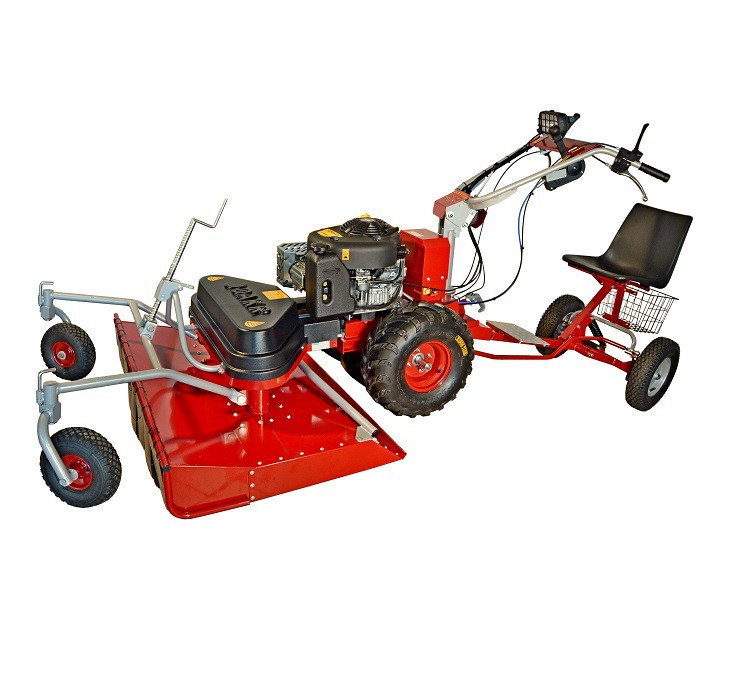

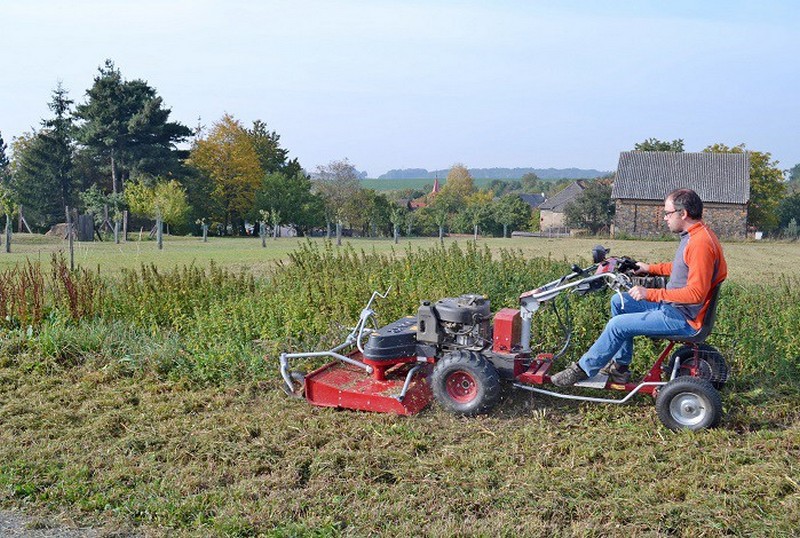

The advantage of our machines is their variability. Here you can see the Panter FD3-500 and M121 two-blade mulcher with BPR seat. This combination offers 4-wheel tractor suitable for flat grounds and slight slopes up to 10°. You can seat during operation and control the machine´s direction by handlebars. The sprung seat makes the ride more comfortable. You will safe your energy and easily use the maximum travel speed which you will appreciate when mowing large gardens, partures etc.
The grass is mulched in pieces which will turn into humus quickly and serve as fertilizer. If you mulch 3 times per year, you will not have to rake then. A good combination is also to mow and mulch once a year. Mow the first grass during June and July to make hay. And mulch the second grass which is not too dense already. It is just up to you how you will maintain your lands. Panter is multi-purpose machine for professional use with possibility to rebuild it into a mulcher, mower, haymaker etc.
You will find the list of the adaptors range in compatible adaptors section.

Panter FD3-500 cc driving unit with M121 mulcher and BPR seat parameters:
Max. output:9,680 m2/hour
Max. operating width:121 cm
Engine:4-stroke Briggs&Stratton I/C, Powerbuilt OHV, capacity 500 ccm, output 15.5 HP
Gearbox / Axletree:hydrostatic gearbox Tuff Torq K46 + lockable differential
Travel:single slide control of speed forward 0÷8 km/hour, backward 0÷4 km/hour

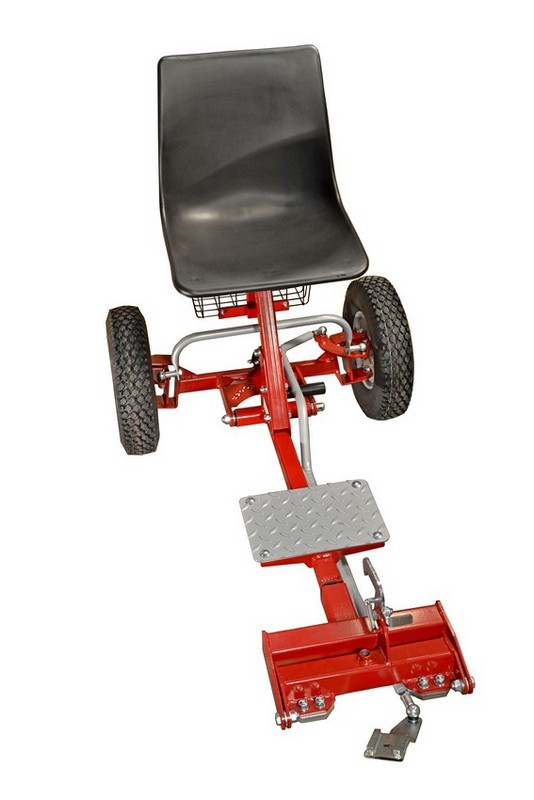

Seat´s axle:sprung axle controlled by handlebars
Diametre necessary to turn:3.3 m
Safety slope accessibility:up to 10°
Max. seat capacity:130 kg
Recommended maintained area:unlimited
Engine vibration attenuation:4 silent blocks
Engine starting:electro-starter, manual reserve starter
Fuel:gasoline Natural 95
Fuel consumption:4 - 6 l/hour
Weight:247 kg
Cutting mechanism:2 mulching blades
Blades drive:the blade timing is provided by means of chains in order to ensure overlapping blade routes

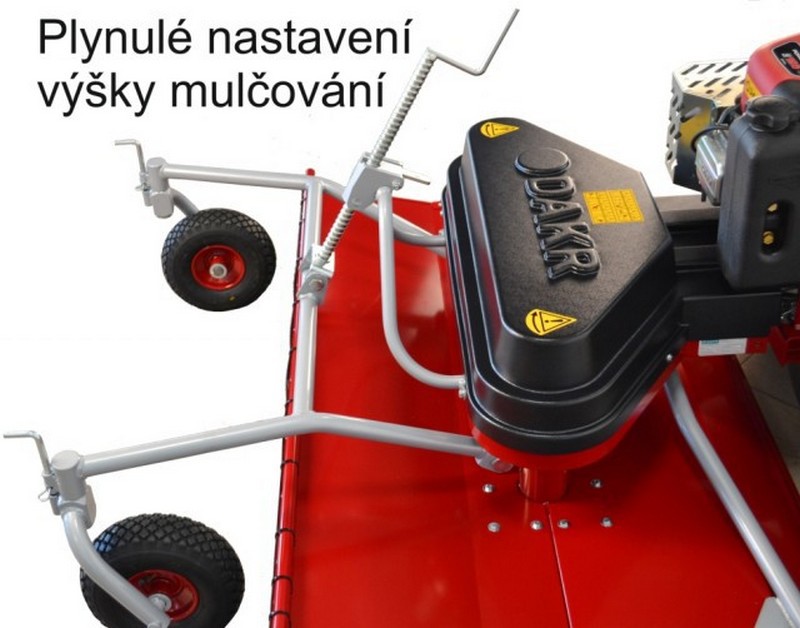

Stubble height:central height setting of the stubble height (3-10 cm)

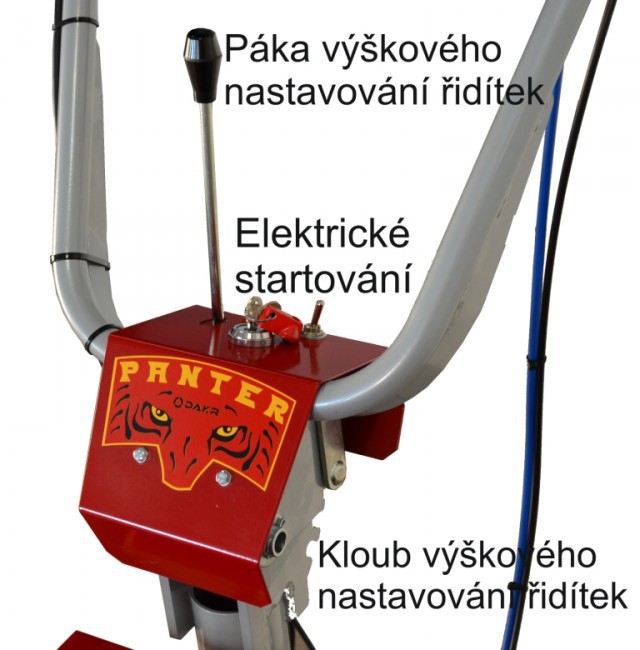

Handlebars:height and side adjustable, float locking prevent from pressing your legs

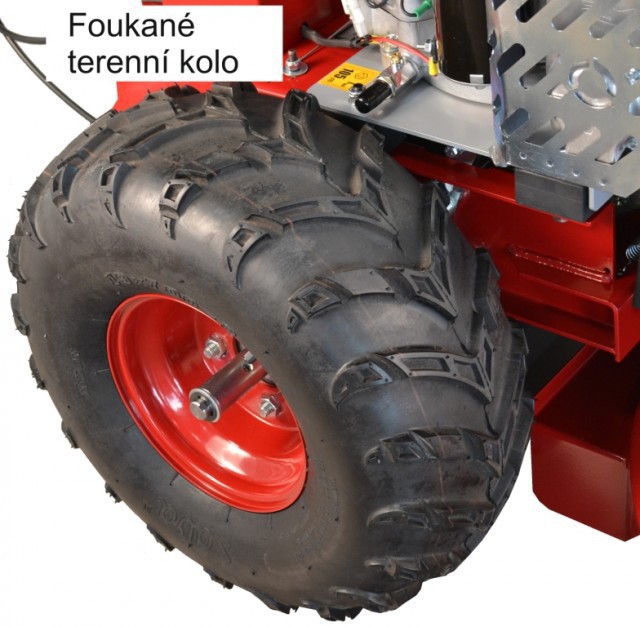

Wheels:big blown wheels 480 mm with V-shaped tread pattern, outer profile 760 mm (extendable to 940 mm)

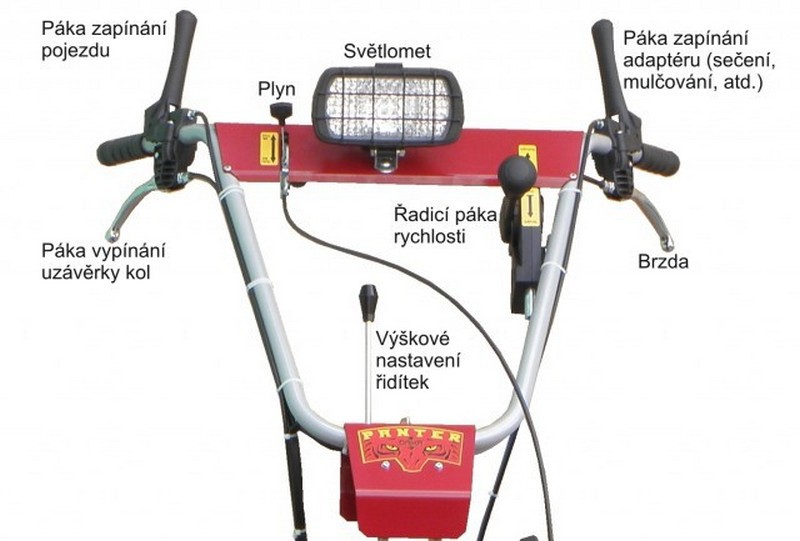

Other equipment:driving brake, parking brake, headlight, charging battery



Panter FD3-500 driving unit with M121 mulcher and BPR seatPanter FD3-500 driving unit with M121 mulcher and BPR seatPanter FD3-500 driving unit with M121 mulcher and BPR seatPanter FD3-500 driving unit with M121 mulcher and BPR seatPanter FD3-500 driving unit with M121 mulcher and BPR seatPanter FD3-500 driving unit with M121 mulcher and BPR seatPanter FD3-500 driving unit with M121 mulcher and BPR seatPanter FD3-500 driving unit with M121 mulcher and BPR seat
