Tekton one-drum mower and mulcher
Order No.: | 01233.317 + 01233.184 |
Engine: | Briggs&Stratton 5.5 HP |
Engine capacity: | 163 cc |
Travel: | yes, 2 speeds forward |
The set consists of the Tekton driving unit and 2 adaptors (an one-drum mower with operating width 60 cm and a stainless mulcher with operating width 55 cm).

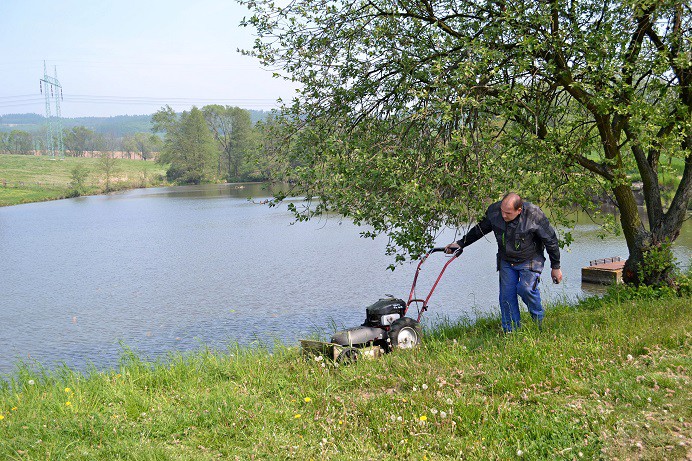

The driving unit with 2 forward speeds is equipped with a proven reliable engine and its control is so intuitive. The big advantage is an axle with characteristic of a differential where the both wheels are lockable at once. It is so easy to turn the machine during operation but when it is in traction it goes just straight. The machine is fitted with the big blown wheels with a diameter of 40 cm. The V-shaped tread pattern works very well and easily despite a surface roughness. The handlebars are height adjustable. While mowing under the trees it is possible to control the handlebars by one hand and walk next to the mower out of the trees which is impossible with mowers with standard handlebars. To rebuild the mower into mulcher is necessary to loosen one bolt which hold the mowing disc. Now fix the mulcher by 3 bolts instead. It all takes 15 minut.
There are standardly 2 blades on the mower fitted but there are holes for 4 blades on the mowing disc. The two blades are suitable for those who mow the grass for animal feed. The grass is mowed gently as by a scythe. The users can fix 4 blades in case they compost the grass or maintain land with high and thick cover. The area around the holes for blades is reinforced by special washers welded on. A fender apron under the disc is pivoting and covers the disc up to half of its diameter in order not to remain too long stubble on uneven terrain. But it is also possible to purchase a bigger pivoting steel fender apron which covers almost all disc from the bottom.
The mulcher with stainless cover has a central stubble height adjustment from 2 to 10 cm. The grass is mulched by a special mulching blade.
The mower is equipped with a stainless steel cover which meets the safety standards. It says that the half of the cutting disc has to be covered by solid shield within the blades.
Travel speed: | 2 forward speeds (2,3 km/hour; 3,0 km/hour) |
Tyres: | big blown wheels 400 mm with V-shaped tread pattern |
Engine: | 4-stroke B&S 675 EXi Series |
Fuel: | gasoline Natural 95 |
Engine capacity: | 163 cc |
Cylinder: | aluminium |
Engine working speed: | 3,060 rpm |
Total max. engine output: | 5.5 HP/4.0 kW |
Engine output at 3,060 rpm: | 3.8 HP/2.8 kW |
Torque at 3,060 rpm: | 8.8 Nm |
Engine lubrication: | spray |
Engine starting: | Ready Start System - easy starting without choke |
One-drum mower specification:
Max. output: | 1,800 m2/hour |
Max. operating width: | 60 cm |
Disc: | at choice 2 or 4 blades |
Stubble height: | 3.5 cm in average |
Recommended maintained area: | up to 10,000 m2 |
Disc covering: | stainless steel cover (in conformity with Safety Standards |
Mulcher specifications:
Max. output: | 1,650 m2/hour |
Max. operating width: | 55 cm |
Stubble height: | adjustable 4-10 cm |
Recommended maintained area: | up to 10,000 m2 |
- Set of 2 blades and 2 bolts for 4-blade discs
Tekton disc has 4 holes for 4 blades. We recommend to mow with 2 blades when you hay the grass for livestock and with 4 blades if you are going to compost it.
- Steel pivoting slider
A steel pivoting slider with bearing prevents from cutting of the blades in the ground on uneven terrain.
- Tekton adaptor SUNI 2 One-drum mower
drum mower with double disc compatible for Tekton kit
- Tekton adaptor RUNI 80 Snow blade
blade compatible with Tekton kit
