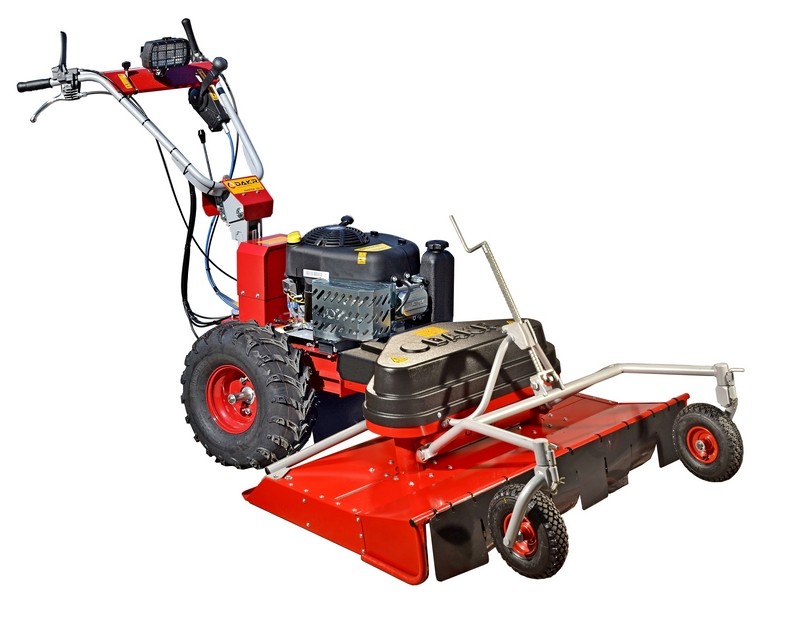

Panter FD3-500 driving unit with M121 two-blade mulcher
| Order No.: | 01236.005 + 01236.001 |
| Max. output: | 9,680 m2/hour |
| Max. operating width: | 121 cm |
| Engine: | Briggs&Stratton 15.5 HP |
| Travel: | yes, single slide control of speed forward and backward |
M121 mulcher specifications:
| Options: | seat for flat grounds and slight slopes |
| Max. output with Panter FD3: | 9,680 m2/hour |
| Max. operating width: | 121 cm |
| Stubble height: | centrally regulable 3-10 cm |
| Weight: | 87 kg |
| Recommended maintained area: | unlimited |
| Compatible driving units: | Panter FD3eco, FD3-500 |
Panter FD3-500 driving unit specifications:
| Travel: | yes, single slide control of speed forward and backward |
| Speeds: | forward 0÷8 km/hour, backward 0÷4 km/hour |
| Axletree: | lockable differential |
| Gearbox: | hydrostatic Tuff Torq K46 |
| Other equipment: | driving brake, parking brake, headlight, charging battery |
| Engine vibration attenuation: | 4 silent blocks |
| Handlebars: | height and side adjustable |
| Tyres: | big blown wheels 480 mm with V-shaped tread pattern |
| Wheels outer profile: | 76 cm |
| Weight: | 124 kg |

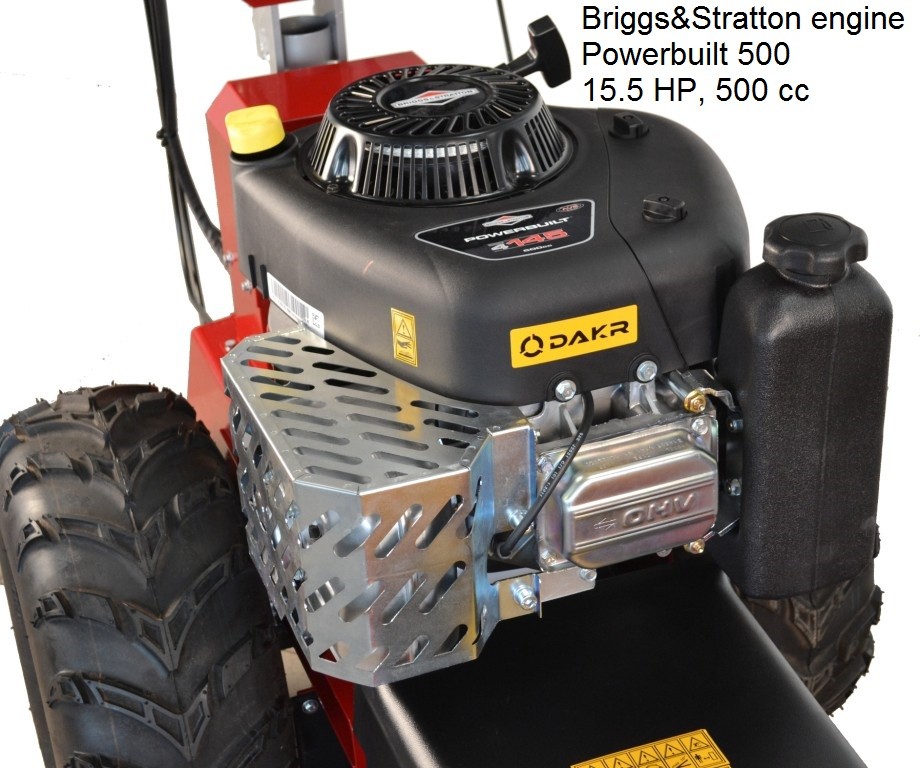

| Engine: | 4-stroke Briggs&Stratton I/C, Powerbuilt OHV |
| Fuel: | gasoline Natural 95 |
| Engine capacity: | 500 cc |
| Cylinder: | cast iron sleeve |
| Max. engine output: | 15.5 HP/11.3 kW |
| Torque at 3,600 rpm: | 30.2 Nm |
| Engine lubricaton: | spray |
| Engine starting: | electro-starter, manual reserve starter |
Vares IT 500 Profi Trailer - NOT FOR SALE SEPARATELY!loading area 1,470 x 1,090 mm; maximum load capacity 700 kg; compatibility with Panter driving units
Panter FD3 Steel wheelsThe wheels increase the possibility of using the machine on a slope and prevent the possibility of a defect.
Aerator VERTI Panteradaptor for aerating; compatibility with Panter driving units
MC100 Flail mower Panteradaptor for grass mulching; compatibility with Panter driving units
Everest Turbo spreadertowed spreader; hopper capacity 150 kg of salt; operating width 3-6 m; equipped with seat
Axle extension for Panter FD3 driving unitouter wheels profile extension from 760 mm to 940 mm; compatibility with Panter FD3eco and FD3-500 driving units
DV70 Branch crusher Panteradaptor for branch shredding; compatibility with Panter driving units
ROT Rotary cultivator Panteradaptor for soil loosening; compatibility with Panter driving units
SB 110 Sweeping brush Pantersnow removal; operating width 110 cm; collecting container and protection shield as option; compatibility with Panter driving unit
Vares HV 220/S Trailer - NOT FOR SALE SEPARATELY!loading area 1,240 x 950 mm; maximum load capacity 220 kg; compatibility with Panter driving units
Plastic crate body Pantercompatibility with Panter driving units; maximum load capacity 220 kg
Yard–Woods body for KOR 220 steerable cart chassisMaximum load capacity 220 kg
KOR220 Steerable chassis Pantermultipurpose steerable chassis is compatible with rigid body, yard-woods body and plastic crate body; steerable wheels; max. loading capacity 220 kg; compatibility with Panter driving units
RAP100 Blade Panteradaptor for snow removal compatible with Panter driving units; operating width 100 cm
RAP85 Blade Panteradaptor for snow removal compatible with Panter driving units; operating width 85 cm
SF70 Snow blower Panteradaptor for snow removal; operating width 69 cm; compatibility with Panter driving units
OP114 Hay turner Panteradaptor for hay turning and raking compatible for Panter driving units; operating width 90 cm
M70 Mulcher Panteradaptor compatible with Panter FD2 and FD2H driving units; operating width 71 cm
BPR Steerable seat Pantersteerable seat compatible with Panter FD3 driving units; controlled by handlebars; max. seat capacity 130 kg
BP Seat Panternon-steerable seat compatible for Panter driving units; max. seat capacity 100 kg
RZS121 Two-drum mower Panteradaptor compatible for Panter FD3 and FD5 driving units; operating width 121 cm
DZS125 Four-disc mower Panteradaptor compatible for Panter driving units, operating width 125 cm
RZS70K One-drum mower Panteradaptor compatible with Panter driving units; operating width 69 cm
Panter FD3-500 + M121 Two-blade mulcher with BPR Seatmodular self-propelled mulcher with operating width 121 cm; hydrostatic gearbox; single slide control of speed forward and backward; B&S engine with max. output 15.5 HP
Panter FD3-500 + MC100 Flail mulchermodular self-propelled mulcher with operating width 100 cm; hydrostatic gearbox; single slide control of speed forward and backward; B&S engine with max. output 15.5 HP
Panter FD3eco + M121 Two-blade mulchermodular self-propelled mulcher with operating width 121 cm, hydrostatic gearbox, single slide control of speed forward and backward, B&S engine with max. output 13.2 HP
Panter FD3-500 + M70 Mulchermodular self-propelled mulcher; operating width 71 cm; hydrostatic gearbox; single slide control of speed forward and backward; B&S engine with max. output 15.5 HP
Panter FD3eco + M70 Mulchermodular self-propelled mulcher; operating width 71 cm; hydrostatic gearbox; single slide control of speed forward and backward; B&S engine with max. output 13.2 HP
